SL/SM Coaxial

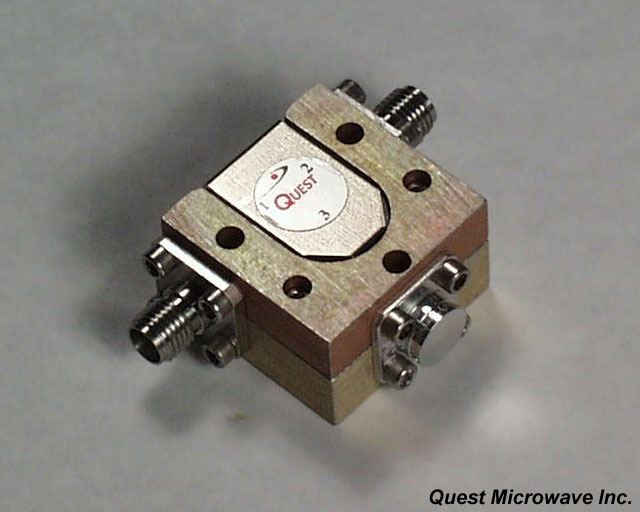

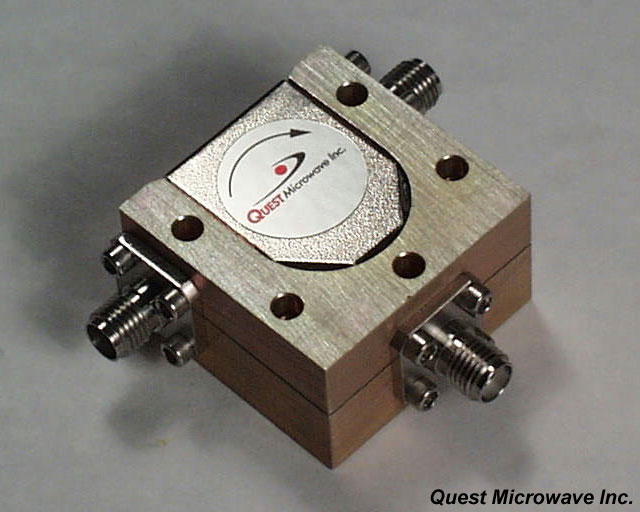

(low frequency): The SL/SM Coaxial series covers from 790 MHz to 1.7 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| SL7986T01 | 790 to 860 MHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SL8289T01 | 824 to 890 MHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SL8996T01 | 890 to 960 MHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SM1214T01 | 1.2 to 1.4 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SM1417T01 | 1.4 to 1.7 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
SM Coaxial

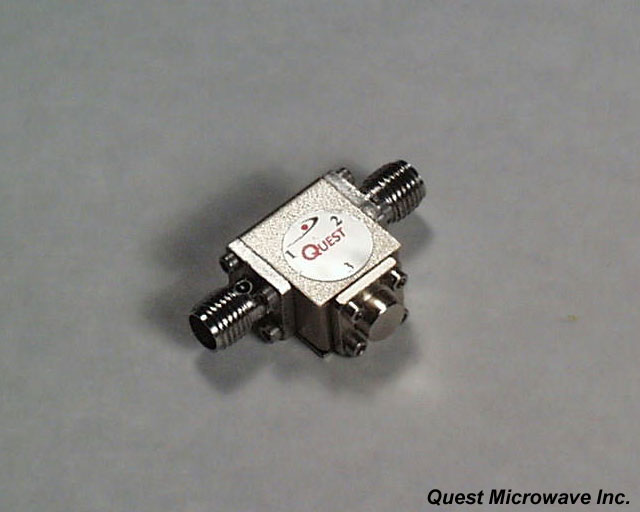

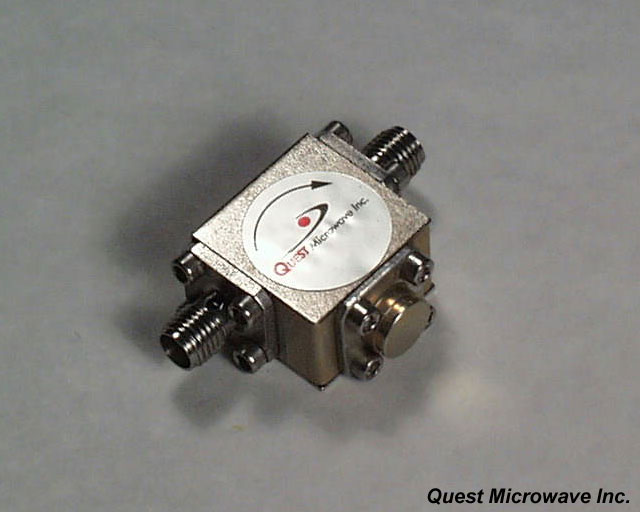

(medium frequency): The SM Coaxial series covers from 1.7 GHz to 3.0 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| SM1718T01 | 1.7 to 1.85 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM1720T01 | 1.7 to 2.0 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM1820T01 | 1.85 to 2.0 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM1922T01 | 1.95 to 2.2 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM2023T01 | 2.0 to 2.3 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM2124T01 | 2.1 to 2.4 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM2327T01 | 2.3 to 2.7 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.00x1.00x.63 |
| SM2730T01 | 2.7 to 3.0 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.00x1.00x.63 |
SM Coaxial
(high frequency): The SM Coaxial series covers from 3.6 GHz to 8.5 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| SM3643T01 | 3.6 to 4.3 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 10w / 2w | .75x.75x.50 |
| SM4450T01 | 4.4 to 5.0 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 10w / 2w | .75x.75x.50 |
| SM5459T01 | 5.4 to 5.9 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 10w / 2w | .75x.75x.50 |
| SM5865T01 | 5.8 to 6.5 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 10w / 2w | .75x.75x.50 |
| SM6485T01 | 6.4 to 8.5 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 10w / 2w | .75x.75x.50 |
SR Coaxial
(High Frequency): The SR Coaxial series covers from 8.0 GHz to 23.6 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| SR0812T01 | 8.0 to 12.4 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 5w / 1w | .50x.57x.39 |
| SR1015T01 | 10.0 to 15.0 GHz | 23 dB Min. | 0.5 dB Max. | 1.15:1 Max. | 60w / 1w | .50x.57x.39 |
| SR1414T01 | 14.0 to 14.5 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 10w / 1w | .50x.57x.39 |
| SR1719T01 | 17.7 to 19.7 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .50x.57x.39 |
| SR2123T01 | 21.2 to 23.6 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .50x.57x.39 |
