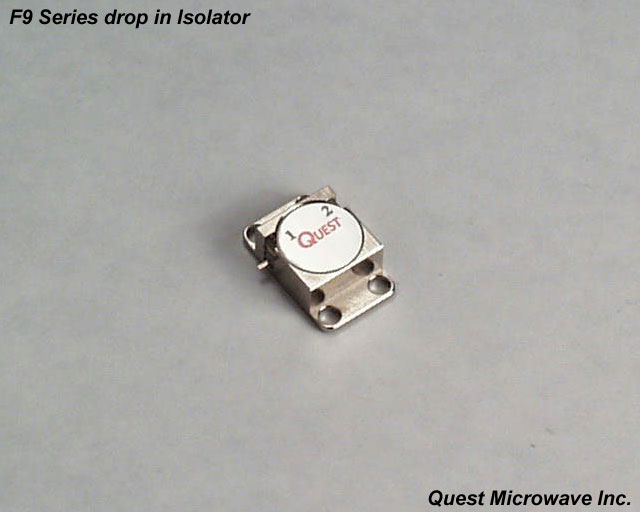

F9 Series:
The F9 series is a small flange mount drop in device covering from 3.6 GHz to 14.5 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| F9-M3643T01 | 3.6 to 4.3 GHz | 18 dB Min. | 0.5 dB Max. | 1.30:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-M4450T01 | 4.4 to 5.0 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-M5459T01 | 5.4 to 5.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-M5865T01 | 5.8 to 6.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-M6472T01 | 6.4 to 7.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-M7179T01 | 7.1 to 7.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-M7885T01 | 7.8 to 8.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
| F9-R1414T01 | 14.0 to 14.5 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 5w / 1w | .375x.62x.21 |
F6 Series:
The F6 series is a ultra small flange mount drop in device covering from 7.8 GHz to 26.0 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| F6-M7885T01 | 7.8 to 8.5 GHz | 18 dB Min. | 0.5 dB Max. | 1.30:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1112T01 | 11.7 to 12.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1213T01 | 12.7 to 13.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1414T01 | 14.0 to 14.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1719T01 | 17.7 to 19.7 GHz | 18 dB Min. | 0.7 dB Max. | 1.30:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R2123T01 | 21.2 to 23.6 GHz | 18 dB Min. | 0.7 dB Max. | 1.30:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R2426T01 | 24.0 to 26.0 GHz | 17 dB Min. | 0.8 dB Max. | 1.35:1 Max. | 5w / 1w | .250x.50x.17 |
