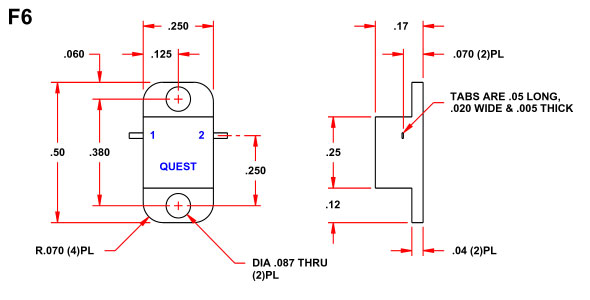

The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| F6-M7885T01 | 7.8 to 8.5 GHz | 18 dB Min. | 0.5 dB Max. | 1.30:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1112T01 | 11.7 to 12.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1213T01 | 12.7 to 13.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1414T01 | 14.0 to 14.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R1719T01 | 17.7 to 19.7 GHz | 18 dB Min. | 0.7 dB Max. | 1.30:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R2123T01 | 21.2 to 23.6 GHz | 18 dB Min. | 0.7 dB Max. | 1.30:1 Max. | 5w / 1w | .250x.50x.17 |
| F6-R2426T01 | 24.0 to 26.0 GHz | 17 dB Min. | 0.8 dB Max. | 1.35:1 Max. | 5w / 1w | .250x.50x.17 |
