D25 Series:

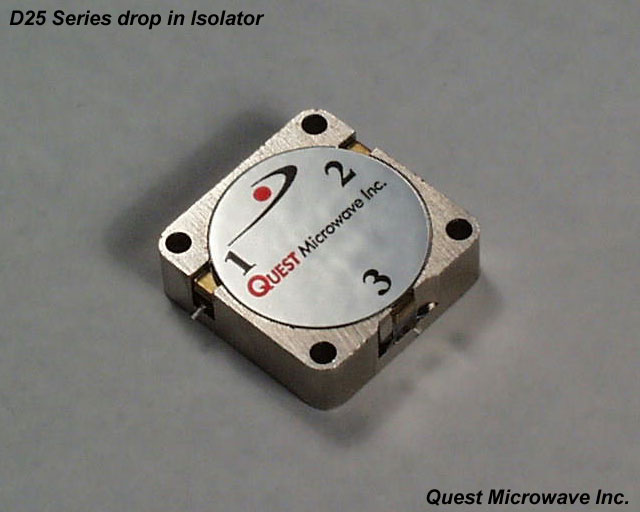

The D25 series is a conventional thru hole mount drop in device covering from 800 MHz to 1.7 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| D25-L8082T01 | 800 to 823 MHz | 23 dB Min. | 0.4 dB Max. | 1.20:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-L8284T01 | 824 to 849 MHz | 23 dB Min. | 0.4 dB Max. | 1.20:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-L8689T01 | 869 to 894 MHz | 23 dB Min. | 0.4 dB Max. | 1.20:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-L8996T01 | 890 to 960 MHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-L9094T01 | 900 to 943 MHz | 23 dB Min. | 0.4 dB Max. | 1.20:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-L9396T01 | 935 to 960 MHz | 23 dB Min. | 0.4 dB Max. | 1.20:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-M1214T01 | 1.2 to 1.4 GHz | 20 dB Min. | 0.3 dB Max. | 1.25:1 Max. | 200w / 10w | 1.0x1.0x.30 |
| D25-M1417T01 | 1.4 to 1.7 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 200w / 10w | 1.0x1.0x.30 |
D19 Series:

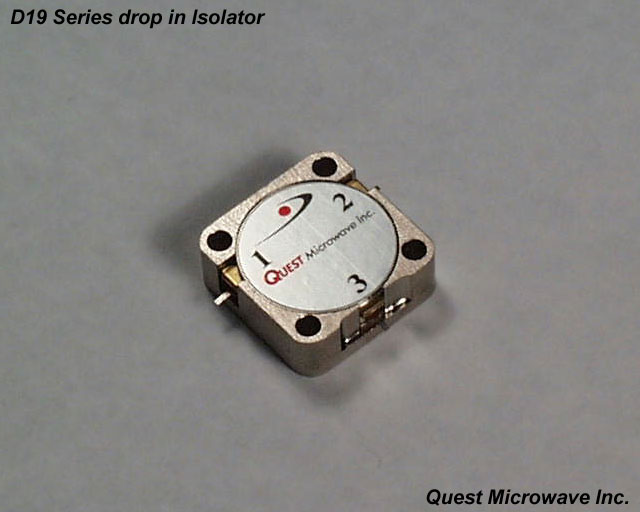

The D19 series is a conventional thru hole mount drop in device covering from 1.71 GHz to 2.9 GHz. Click on the image or drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| D19-M1718T01 | 1.71 to 1.85 GHz | 23 dB Min. | 0.3 dB Max. | 1.20:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M1719T01 | 1.71 to 1.99 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M1819T01 | 1.85 to 1.99 GHz | 23 dB Min. | 0.3 dB Max. | 1.20:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M1922T01 | 1.95 to 2.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2023T01 | 2.0 to 2.3 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2124T01 | 2.1 to 2.4 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2325T01 | 2.3 to 2.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2527T01 | 2.5 to 2.7 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2729T01 | 2.7 to 2.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
D13 Series:

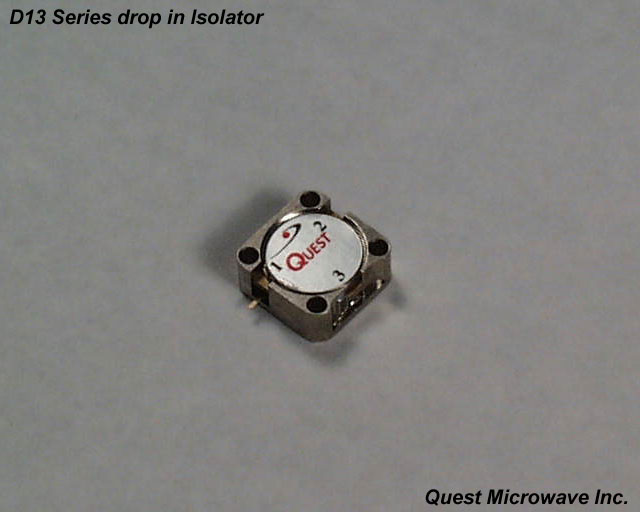

The D13 series is a conventional thru hole mount drop in device covering from 3.6 GHz to 14.5 GHz. Click on the drawing to enlarge it for more detail. The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| D13-M3643T01 | 3.6 to 4.3 GHz | 18 dB Min. | 0.5 dB Max. | 1.30:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M4450T01 | 4.4 to 5.0 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M5459T01 | 5.4 to 5.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M5865T01 | 5.8 to 6.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M6472T01 | 6.4 to 7.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M7179T01 | 7.1 to 7.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M7885T01 | 7.8 to 8.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-R1414T01 | 14.1 to 14.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
