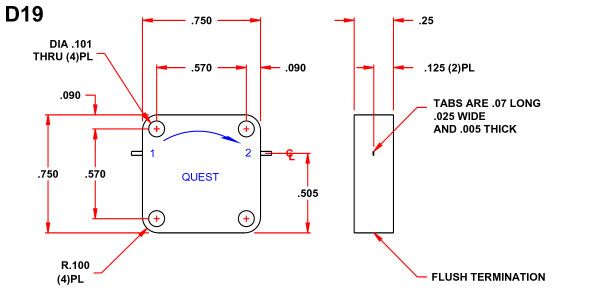

The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| D19-M1718T01 | 1.71 to 1.85 GHz | 23 dB Min. | 0.3 dB Max. | 1.20:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M1719T01 | 1.71 to 1.99 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M1819T01 | 1.85 to 1.99 GHz | 23 dB Min. | 0.3 dB Max. | 1.20:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M1922T01 | 1.95 to 2.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2023T01 | 2.0 to 2.3 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2124T01 | 2.1 to 2.4 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2325T01 | 2.3 to 2.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2527T01 | 2.5 to 2.7 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
| D19-M2729T01 | 2.7 to 2.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 200w / 10w | .75x.75x.25 |
