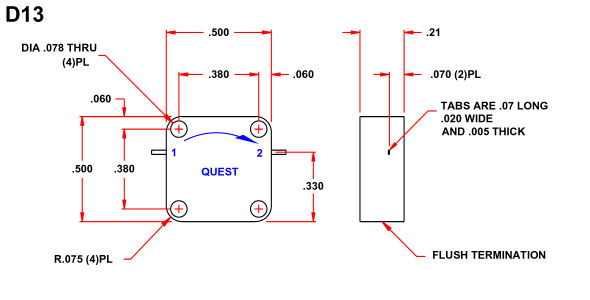

The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| D13-M3643T01 | 3.6 to 4.3 GHz | 18 dB Min. | 0.5 dB Max. | 1.30:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M4450T01 | 4.4 to 5.0 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M5459T01 | 5.4 to 5.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M5865T01 | 5.8 to 6.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M6472T01 | 6.4 to 7.2 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M7179T01 | 7.1 to 7.9 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-M7885T01 | 7.8 to 8.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
| D13-R1414T01 | 14.1 to 14.5 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 30w / 10w | .50x.50x.21 |
