The model number listed below is for isolators, change the "T" to a "C" for circulators.

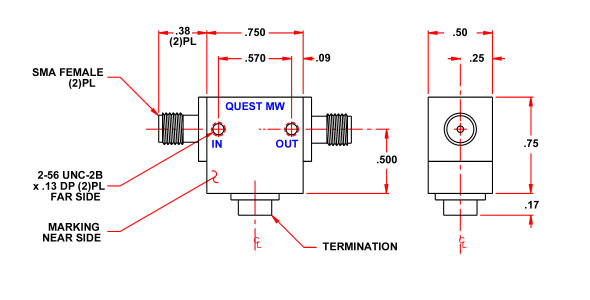

Model Number Frequency Isolation Insertion Loss  VSWR  Power Fwd/Rev Size in inches
SM3643T01 3.6 to 4.3 GHz 23 dB Min. 0.3 dB Max. 1.15:1 Max. 10w / 2w .75x.75x.50
SM4450T01 4.4 to 5.0 GHz 23 dB Min. 0.3 dB Max. 1.15:1 Max. 10w / 2w .75x.75x.50
SM5459T01 5.4 to 5.9 GHz 23 dB Min. 0.3 dB Max. 1.15:1 Max. 10w / 2w .75x.75x.50
SM5865T01 5.8 to 6.5 GHz 23 dB Min. 0.3 dB Max. 1.15:1 Max. 10w / 2w .75x.75x.50
SM6485T01 6.4 to 8.5 GHz 20 dB Min. 0.4 dB Max. 1.25:1 Max. 10w / 2w .75x.75x.50
