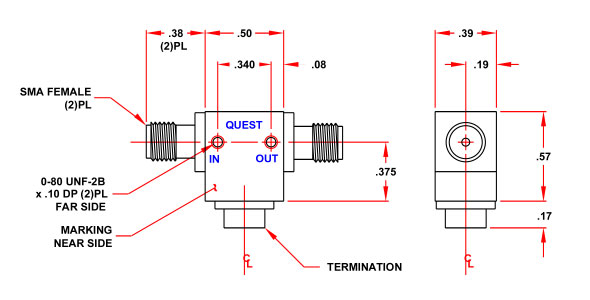

The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||
| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| SR0812T01 | 8.0 to 12.4 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 5w / 1w | .50x.57x.39 |
| SR1015T01 | 10.0 to 15.0 GHz | 23 dB Min. | 0.5 dB Max. | 1.15:1 Max. | 60w / 1w | .50x.57x.39 |
| SR1414T01 | 14.0 to 14.5 GHz | 23 dB Min. | 0.3 dB Max. | 1.15:1 Max. | 10w / 1w | .50x.57x.39 |
| SR1719T01 | 17.7 to 19.7 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .50x.57x.39 |
| SR2123T01 | 21.2 to 23.6 GHz | 20 dB Min. | 0.5 dB Max. | 1.25:1 Max. | 5w / 1w | .50x.57x.39 |
