The model number listed below is for isolators, change the "T" to a "C" for circulators. |
||||||

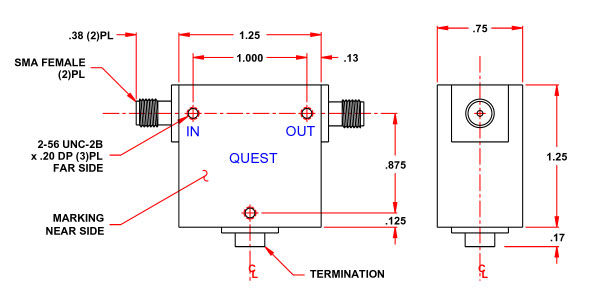

| Model Number | Frequency | Isolation | Insertion Loss | VSWR | Power Fwd/Rev | Size in inches |
| SL7986T01 | 790 to 860 MHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SL8289T01 | 824 to 890 MHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SL8996T01 | 890 to 960 MHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SM1214T01 | 1.2 to 1.4 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
| SM1417T01 | 1.4 to 1.7 GHz | 20 dB Min. | 0.4 dB Max. | 1.25:1 Max. | 75w / 10w | 1.25x1.25x.75 |
